AdvancedFrame™ Convertible Inatable Kayak Owner’s Manual

OPTIONAL DECKS:

Aach the optional Single Deck or Double Deck kit (sold separately) to create a closed deck kayak

with the option for using a spray skirt. Three seating positions allow for maximum versatility.

Single Double

3. ASSEMBLY/INFLATING/DEFLATION INSTRUCTION

The AdvancedFrame™ Kayak has a rigid frame in the bow and stern that enhances its performance.

3.1 Assembly

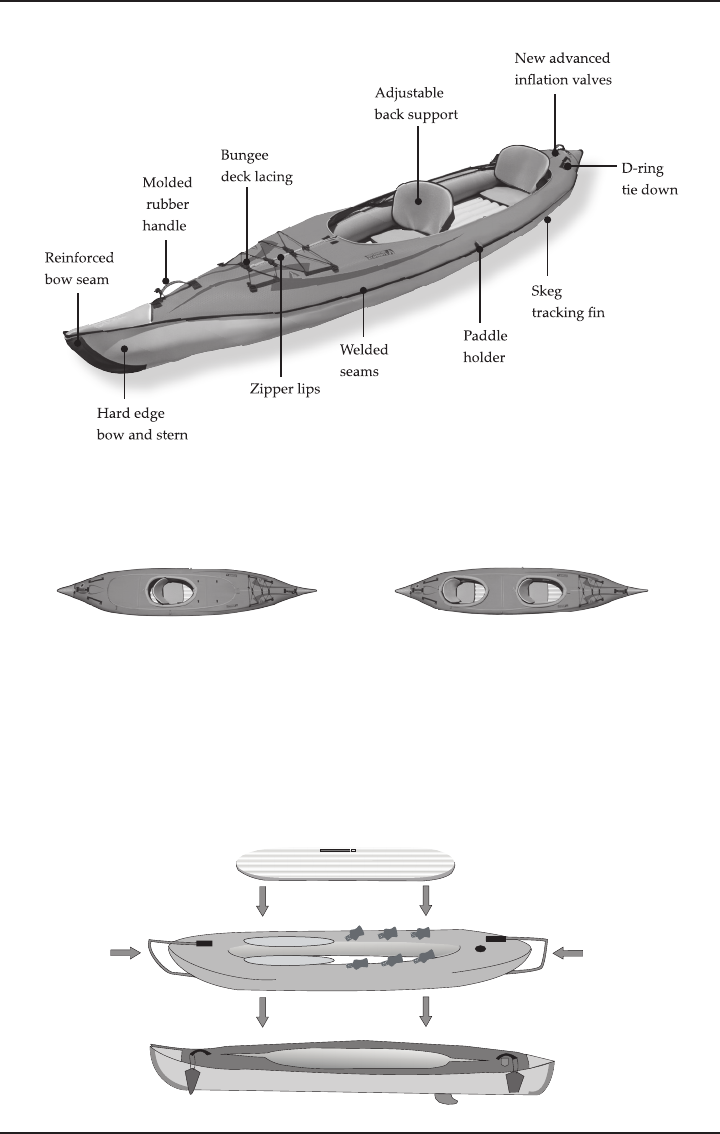

The illustration below shows the general assembly of the kayak. Your kayak comes from the

factory pre-assembled. The only assembly you should need to do is aach the adjustable seats.

INFLATABLE FLOOR

ADVANCEDFRAME

OUTER COVER

BOW RIB

STERN RIB

Step 1

Step 2

Step 3

Step 1
